Industrial machine vision plays an important role in modern manufacturing, automated inspection and quality control. Choosing the right imaging technology can help manufacturers detect defects, improve production efficiency and maintain consistent product quality. Two widely used options are line scan cameras and area scan cameras. Although both capture images for industrial inspection, they differ in how they acquire image data and the applications they support.
Understanding the differences between a line scan camera vs area scan camera helps businesses select a suitable solution based on product movement, inspection speed, image resolution and production requirements.
What Is a Line Scan Camera?
A line scan camera is an industrial vision camera that captures an image one line of pixels at a time. As an object moves past the camera, successive lines are combined to create a complete image. This process makes line scan imaging particularly useful for inspecting continuous materials and products moving at high speeds.
Unlike conventional imaging systems, a line scan camera relies on relative movement between the camera and the object to build the image. Accurate synchronisation with conveyor movement is important for maintaining image proportions and inspection accuracy.
Line scan cameras are commonly used in applications such as textile inspection, paper manufacturing, printing quality control, metal surface inspection and packaging production. They are also suitable for examining cylindrical objects, where rotating the product allows the camera to capture its surface as a continuous image.
For manufacturers handling long, wide or continuously moving materials, line scan technology can provide detailed imaging across the entire inspection area.
What Is an Area Scan Camera?
An area scan camera captures a complete two-dimensional image in a single exposure. Its sensor contains a rectangular array of pixels, allowing it to record both the horizontal and vertical dimensions of an object at once.
This makes area scan cameras suitable for inspecting individual products, components and assemblies that fit within the camera's field of view. They are often easier to integrate into industrial machine vision systems because they capture a complete frame without requiring the object to move continuously during image acquisition.
Area scan cameras are widely used for barcode reading, component verification, dimensional measurement, product identification, packaging inspection and robotic guidance. Depending on the model and imaging requirements, they can capture monochrome or colour images.
For manufacturers that need to inspect individual parts or identify missing components on an assembly line, an area scan camera offers a practical and versatile imaging solution.
Key Differences Between Line Scan and Area Scan Cameras
Although both technologies support automated visual inspection, their image acquisition methods make them suitable for different operating conditions.
1. Image Acquisition

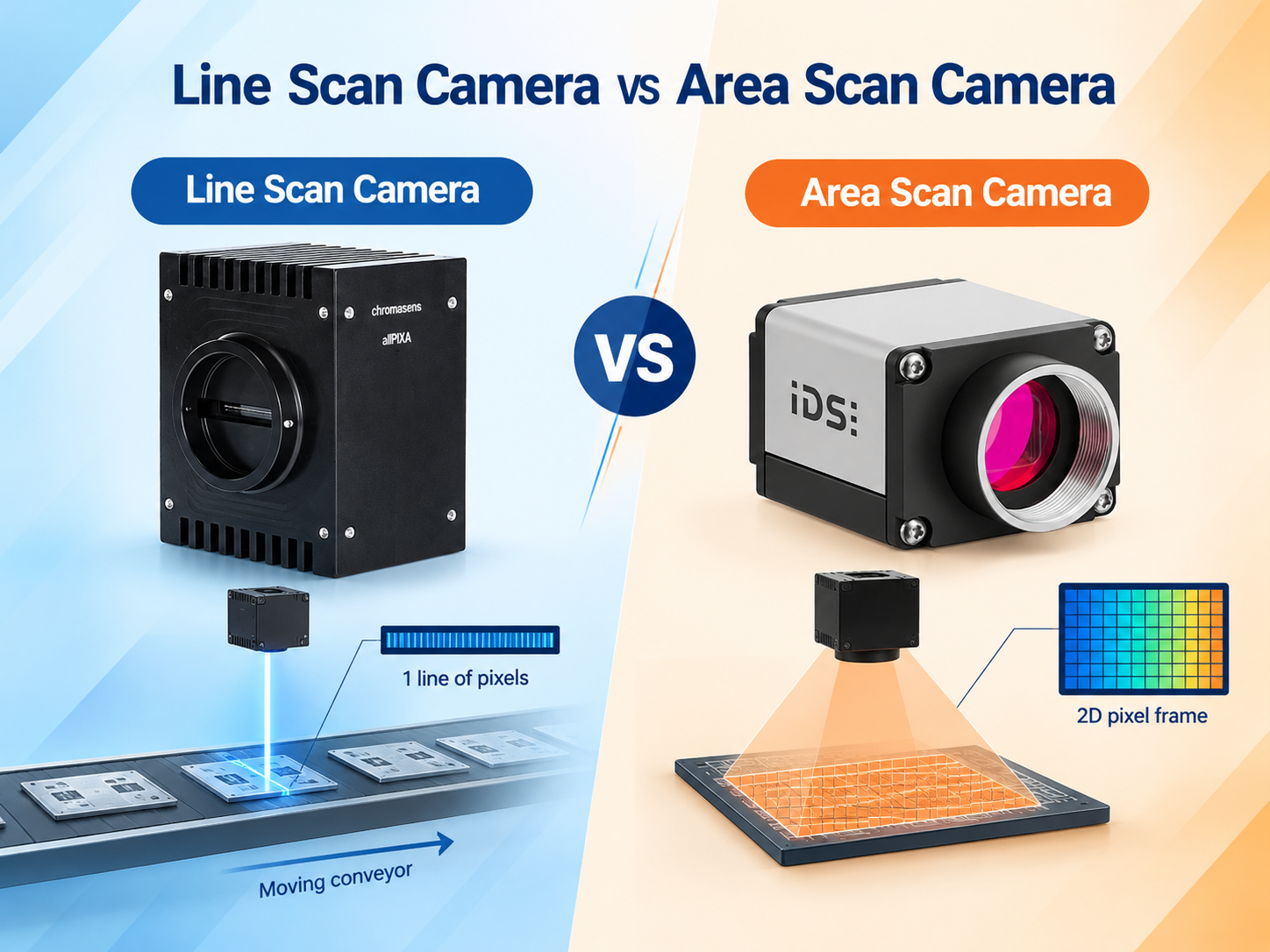

The primary difference is how each camera captures images. A line scan camera records individual pixel rows and combines them as the object moves. An area scan camera captures an entire rectangular image in one exposure.
Consequently, line scan cameras are better suited to continuous imaging, while area scan cameras are ideal for capturing complete objects within a defined field of view.
2. Object Movement and Production Speed
Line scan cameras work particularly well with continuously moving products, including materials transported through production lines. Their line rate must be synchronised with object movement to maintain accurate image dimensions.
Area scan cameras capture individual frames, making them suitable for stationary objects or products that move in controlled stages. Fast-moving objects can also be inspected using area scan technology when appropriate exposure times, triggering and lighting are configured.
3. Resolution and Image Detail
Line scan cameras can deliver high-resolution imaging across wide materials and long surfaces. The final image length depends on the number of lines captured during movement, making them useful for inspecting products that cannot fit into one conventional frame.
Area scan cameras provide a fixed two-dimensional resolution for each captured frame. Their suitability depends on the sensor resolution, field of view and size of the smallest feature that needs to be detected.
4. Installation and Lighting
Line scan systems generally require careful synchronisation, stable material movement and uniform illumination across the scanned line. These requirements can increase system integration complexity.
Area scan systems are often simpler to configure because the complete image is captured at once. However, suitable lenses, lighting and exposure settings remain essential for obtaining reliable inspection results.
5. Inspection Applications
Line scan cameras are frequently used for continuous web inspection, surface defect detection, print inspection and cylindrical product imaging.
Area scan cameras are commonly used for assembly verification, label inspection, barcode reading, object detection and dimensional checks on individual components.
How to Choose the Right Industrial Camera
Selecting the right machine vision camera begins with understanding the inspection task. Consider the following factors before making a decision:
Product type: Continuous materials, wide surfaces and cylindrical objects often favour line scan imaging. Individual components usually suit area scan imaging.
Production speed: Evaluate conveyor speed, required inspection throughput and the camera's line rate or frame rate.
Resolution requirements: Determine the smallest defect or feature that must be identified and select a suitable sensor resolution.
Lighting conditions: Assess surface reflectivity, colour, contrast and illumination uniformity.
System integration: Consider available space, camera interfaces, triggering methods, image processing requirements and the existing automation setup.
The right choice depends on the complete inspection system rather than camera specifications alone.
Explore Line Scan and Area Scan Cameras from Lucid Imaging
Choosing an appropriate industrial camera can help improve inspection consistency and support efficient manufacturing processes. Lucid Imaging provides dedicated options for businesses exploring different machine vision requirements.
Explore the line scan camera range for applications involving continuous materials, high-speed production and detailed surface inspection. For applications requiring complete images of individual products or components, explore the area scan camera range.
Review your inspection objectives, product movement, resolution requirements and operating conditions before selecting a camera. Matching the imaging technology to the application can help build a reliable and effective industrial vision system.
Conclusion
The main difference between a line scan camera and an area scan camera lies in how images are captured. Line scan cameras build images line by line and are particularly effective for continuous materials, long surfaces and high-speed inspection. Area scan cameras capture complete two-dimensional frames and are well suited to individual products, component verification and general industrial inspection.
By evaluating production conditions, image detail, lighting and integration requirements, manufacturers can choose the right camera technology for their machine vision application.
